TORVA 20 Gallon Fresh Water Tank, Non-Standard Wheel Well RV Water Tank for Drinking and Water Holding, BPA Free Portable Water Storage for Camping

SKU:RV-WT075

Capacity:20gallon/75liters

Material:LLDPE

Product Dimensions:47” x 11” x 16” / L119*W28*H40.5cm

Packaging Dimensions:48” x 11.8” x 16.9” / L122*W30*H43cm

Compatible Models:Sprinter 2500 & Ford Transit single rear wheel

Net Weight:9.5kg / 20.94lbs

Gross Weight:11kg / 24.25lbs

Fittings:2 x 1/2″ NPT fittings on both ends of the tank1 x 1-1/2″ NPT fitting at one end of the tank, 2 on the other, and 1 on top

Parts List:

1. Threaded connector 1/2 x 1/2NPT (M)
2. Valve 1/2 x 1/2NPT (F)
3. Water outlet pipe connector 1/2″
4. Vent pipe connector 1/2″M: Refers to external thread Male, F: Refers to internal thread Female



• Optimized Space Utilization: Transform the space over the wheel well into a valuable water storage area, ensuring that no inch of your van is left untapped.
• Custom-Fit Water Tank for Compact Vehicles: Engineered specifically for compact models like Sprinter and Transit vans, our water tank also seamlessly adapts to the Dodge ProMaster with a 3.5-inch lift. This tailored solution offers an efficient and effective approach to your water storage needs, ensuring a perfect fit and reliable performance on the road.
• Matte Finish for Enhanced Durability: The caravan water tank features a matte finish that bolsters its wear resistance, promising a long lifespan.
• Versatile Port Configuration: The tank features 4 x 1-1/2″ NPT ports (pre-drilled) and 4 x 1/2″ NPT ports (require drilling) on either end, offering flexibility for various plumbing configurations.
• Ventilation Design: Engineered not to be pressurized, the tank requires venting to ensure optimal functionality and safety.
• BPA-Free Food Grade Material: Crafted from BPA-free food grade linear low-density polyethylene(LLDPE), ensuring the safety and quality of your water supply.
• Family-Sized Water Solution: Designed to cater to the needs of a small family, our 20-gallon water tank offers a generous supply of water for up to 2 people per day. This ensures that your family stays hydrated and well-provided for throughout your travels, with enough water for drinking, cooking, and hygiene, making every day of your journey a comfortable one.

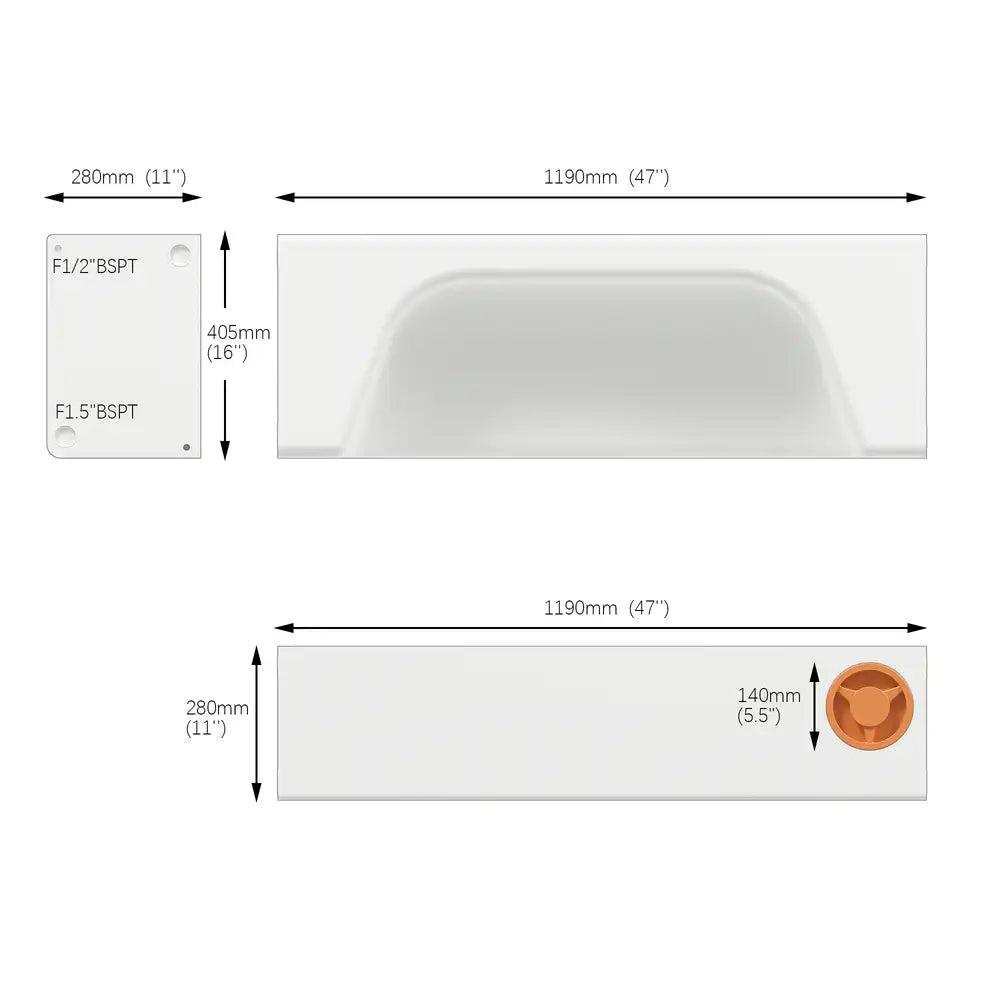

RV-WT075 Three Views

Water tank instruction manual RV-WT075
